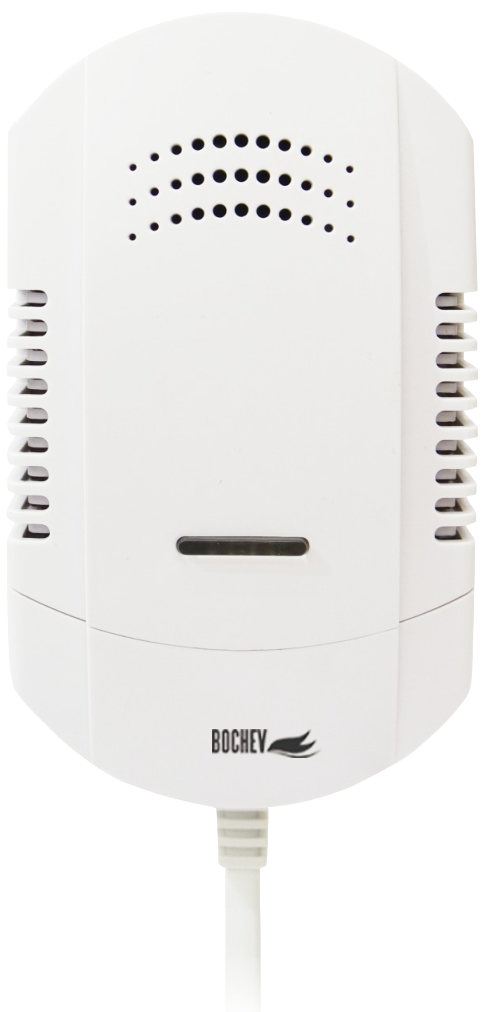

Wireless gas alarm bci-cga01
Product overview
This product selects the advanced plane semiconductor gas sensor, the built-in temperature compensation module, is safe and reliable, is suitable for the family, the hotel, the apartment and so on existence combustible gas indoor place.This product has been identified by the fire product qualification assessment center of the ministry of public security and conforms to GB 15322.2-2003 combustible gas detector part 2: independent combustible gas detector with measuring range of 0 ~ 100% LEL.
Technical parameters
Gas detected: natural gas (CH4)
Operating voltage: AC220V + / - 15%. 50Hz
Static current: no more than 100mA (DC 12V)
Alarm current: no more than 150mA (DC 12V)
Alarm concentration: 6% LEL
Transmission mode: LORA(CN470MHz)
Sound pressure of buzzer: greater than or equal to 70dB(1 meter in front of the buzzer)
Working environment: 0 ℃ ~ + 55 ℃;Relative humidity: less than 95% RH
Stability: long-term working tube concentration error is not greater than 5% LEL
Repeatability: repeated test alarm concentration error is not greater than 3% LEL of soil
Alarm concentration: less than 3% (AC power supply)
Alarm mode: sound and light alarm, normally open/normally closed is optional
Sampling method: natural diffusion
External dimensions: 120 x 68 x 32mm
Weight: 103 g
Installation matters
1. Select an appropriate location for the detection of natural gas and install it on the low dry ceiling at 0 --1,0 meters, close to the gas source, but away from the gas source radius I.5 meters;
2. Fix the mounting plate in the selected position with mounting screws, insert the detector and check whether it is firm;
3, the family should also pay attention to the installation, not being too close to gas appliance installation position, so as not to probe been baking stove flame, cannot install where big lampblack, lest cause false alarms or lead to probe into the pores of the air intake, thus affect the sensitivity of the detector, also cannot be installed on the exhaust fan, doors and Windows with strong and bathroom water vapor.
