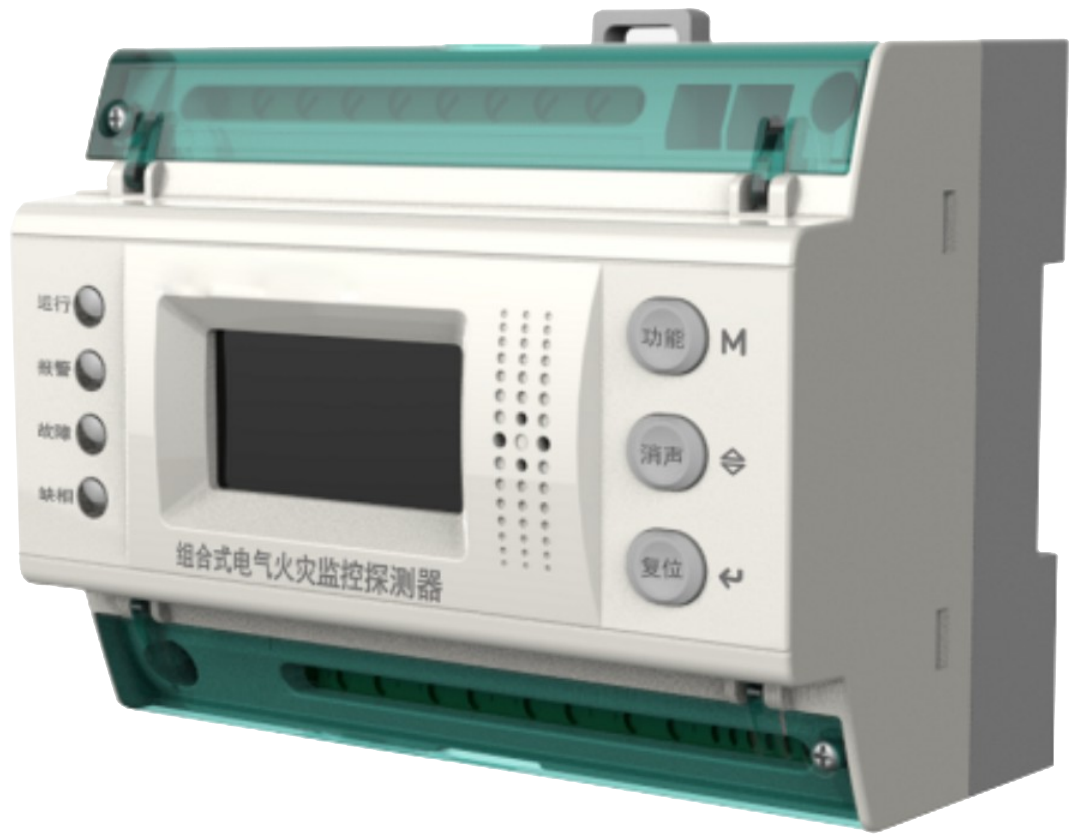

Electrical fire monitoring detector bci-cef01 /LR
Product overview
Electrical fire monitoring detector is based on electrical fire monitoring system, combined with the Internet of things, and through the new generation of information technology such as big data and cloud computing, real-time monitored data can be uploaded to the cloud platform timely and effectively.The platform monitors, counts, analyzes and shares the collected data.Electrical fire monitoring detector mainly monitors residual current, wire current, temperature, voltage and arc.
Product features
On-line inspection
Hazard analysis
Alarm push
Centralized monitoring
Hierarchical management
Maintenance management
Installation position
It is recommended to install the three-level distribution box (terminal equipment), and the two-level distribution box can be installed according to customer requirements.The front end of the circuit breaker measures the voltage and the back end measures the current.Safety sampling is added at the front of voltage circuit breaker.
Technical parameters
Test objects: residual current, temperature, three-phase voltage and three-phase current
Detection range: residual current (0-1000ma), temperature (0-150c), three-phase voltage (100-500v), three-phase current (0-100a with 3000:1 open-closed transformer)
Detection channel: 2-channel residual current/temperature + 3-channel temperature + 1-channel three-phase voltage + 1-channel three-phase current
Uplink communication: Lora
Downlink communication: multi - wire system
Input port: 2 channels of residual current/temperature, 3 channels of temperature, 1 channel of three-phase voltage channel, 1 channel of three-phase current channel;
220V wiring terminal;485 communication port
Output port: switch quantity output port
Communication distance: 485 m communication < 500m
Application scenario/object: suitable for electrical fire monitoring, such as distribution cabinet
Working voltage: 220V
Power consumption: < 3W
Accuracy: 1 ℃ 1 ma
Alarm loudness: no less than 70dB at 1m
Working temperature: (- 10 ~ 60 ℃
Working humidity: (10~93)%RH
Installation: standard guide rail type, screw fixed installation
Shell material: ABS
Size: 117 mm * 90 mm * 66 mm
Protection level IP30
Implementation standard gb14287.2-2014, gb14287.3-2014 (the product is electrical fire, no fire power supply standard)
