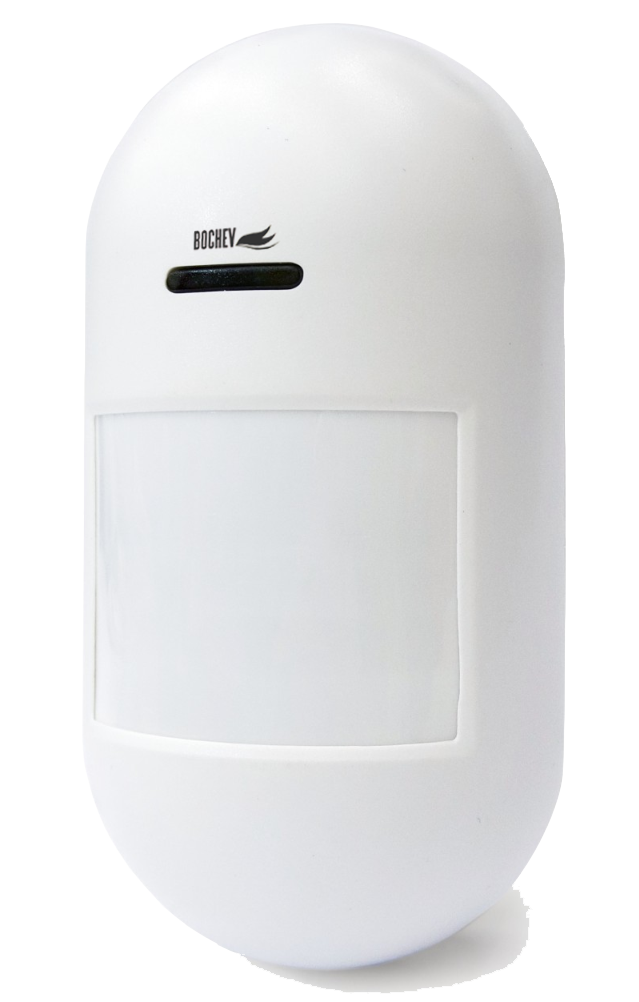

Infrared detector bci-cia01
Product overview
The detector USES 16 bit single chip microcomputer, micro wireless transmitting circuit and fixed million coding technology to solve multi-detector signal interference.It has the advantages of low power consumption, low voltage display, anti-demolition alarm and online reporting.The product is widely used in Banks, warehouses and home security and other places.
Product features
Adopt 16 bits low power consumption single chip microcomputer
Low voltage display
Wireless signal transmission
Low power consumption, long life battery
Digital temperature compensation against white light interference to send regular online reports to the control host
Technical parameters
Working frequency band: CN470MHz
Operating voltage :3V CR123A/ 3.6v ER17335M
Static current: mu less than 15 mu A
Operating current: no more than 120mA
Low voltage alarm: 2.55v + / - 0.1v
Using the environment temperature: - 10 ℃ ~ 55 ℃ relative humidity: 95% or less
Rf power: the maximum output power is 20dBm, adjustable
Receiving sensitivity: -143dbm @sf12/125khz
Communication distance: 2km in the city, 5km in the suburbs
Battery life :1 year
Detection range: 12m
Detection Angle: 110 °
Installation: wall hanging
Installation height: 2.2m
Size: 113 * 55 * 38 mm
