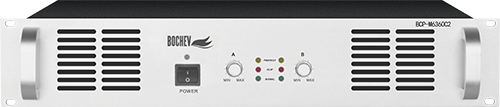

Two-channel broadcast power amplifier bcp-m6360c2
With two independent power amplifier, two independent circuit input;
S have fixed resistance constant pressure output function, constant voltage output is 70 v / 100 v, output 4-16 Ω fixed resistance
2 channels volume independent adjustment
- signal indication, peak cutting indication, overload indication function;
2U standard chassis design, beautiful and practical;
Technical parameters:
Sensitivity: 0dB
Output power: 2x360W
Frequency response: 80Hz ~ 20KHz + / - 1dB
Harmonic distortion: THD less than 0.1%
B signal to noise ratio: greater than or equal to 80dB
Protection circuit: dc protection, overload, over temperature, short circuit protection
S working temperature: - 5 ℃ ~ 80 ℃
Working humidity: 20% ~ 80% relative humidity, no condensation
Dimension: 485x405x88mm
Power supply: AC220V/50Hz;
