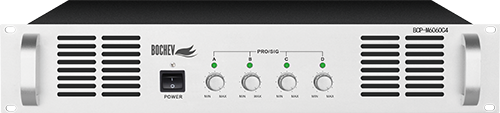

Four-channel broadcast power amplifier bcp-m6060c4
4 channels independent power amplifier, 4 independent circuit input;
S have fixed resistance constant pressure output function, constant voltage output is 70 v / 100 v, output 4-16 Ω fixed resistance
Each channel volume independent adjustment
- signal indication, overload indication function;
2U standard chassis design, beautiful and practical;
Technical parameters:
Sensitivity: 0dB
Output power: 4x60W
Frequency response: 80Hz ~ 20KHz + / - 1dB
Harmonic distortion: THD less than 0.1%
B signal to noise ratio: greater than or equal to 80dB
Protection circuit: dc protection, overload, over temperature, short circuit protection
S working temperature: - 5 ℃ ~ 80 ℃
Working humidity: 20% ~ 80% relative humidity, no condensation
Dimensions: 485x425x88mm
Power supply: AC220V/50Hz;
