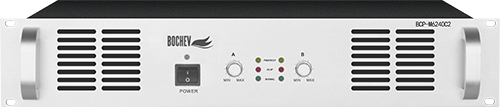

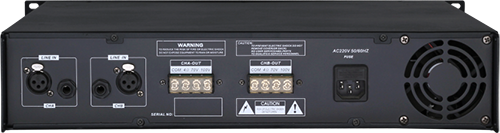

Two-channel broadcast power amplifier bcp-m6240c2

With two independent power amplifier, two independent circuit input;

S have fixed resistance constant pressure output function, constant voltage output is 70 v / 100 v, output 4-16 Ω fixed resistance

B 2 channel volume can be adjusted independently

- signal indication, peak cutting indication, overload indication function;

2U standard chassis design, beautiful and practical;



Technical parameters:

Sensitivity: 0dB

Output power: 2x240W

Frequency response: 80Hz ~ 20KHz + / - 1dB

Harmonic distortion: THD less than 0.1%

B signal to noise ratio: greater than or equal to 80dB

Protection circuit: dc protection, overload, over temperature, short circuit protection

S working temperature: - 5 ¡æ ~ 80 ¡æ

Working humidity: 20% ~ 80% relative humidity, no condensation

Dimension: 485x405x88mm

Power supply: AC220V/50Hz;
