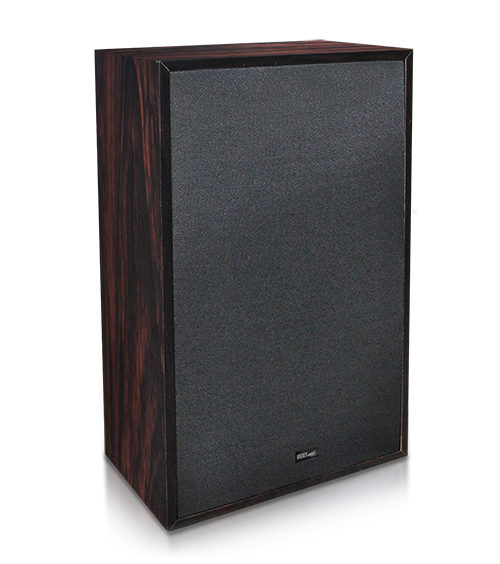

BCP-V8007A

Standard with 2 10/100mrj45 network switch interface, support LAN and wan

B with the program on demand function, can be free through the server software on-demand server programs

1 double channel line input interface, 1 microphone input interface;

With 2x10W amplifier, 1 circuit connected to another 1 constant resistance secondary speaker;

Audio file support MP3 format;

With 3 levels of priority function, alarm for the highest priority, network audio playback for the second level, local playback for the third level

Equipped with terminal feeding speech function, the voice of this terminal can be fed to one or more other designated terminals through the network

The system has queuing automatic download function, to solve all terminals at the same time download network broadband shortage, resulting in slow download speed worry;

B optional offline ring function.



Technical parameters

Power supply: DC24V/1A

Network interface: 2 sets of RJ45

Transmission rate: 100M/10M

Support protocols: TCP/IP,UDP,IGMP(multicast)

Li audio format: MP3

Sampling rate: 8K ~ 48K

AUX sensitivity: -12db

MIC sensitivity: -40db

Standby power consumption: < 3W

Frequency response: 20Hz ~ 20KHz + / - 1dB

Harmonic distortion: THD less than 0.1%

B signal to noise ratio: more than 70dB

S working temperature: 5 ¡æ to 40 ¡æ

Dimensions: 320x150x210mm
