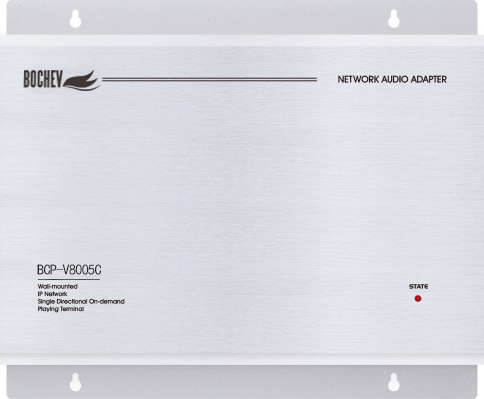

BCP-V8005C
2 standard 10/100mrj45 network switch interfaces to support LAN and wan transmission;
With full duplex two-way intercom function, IP terminal number input can achieve broadcast or intercom;
With 1 local line input interface, local audio can be picked and played to other terminals;
1 channel microphone input interface, intercom with other intercom terminals, 1 channel audio output, 1 channel short circuit output function;
Support regular task function, convenient for school to ring the bell;
With 2x10W stereo amplifier, can be connected to the fixed resistance speaker;
Audio file support MP3 format;
With 3 levels of priority function, alarm for the highest priority, network audio playback for the second level, local playback for the third level
Equipped with terminal feeding speech function, the voice of this terminal can be fed to one or more other designated terminals through the network;
The system has queuing automatic download function, to solve all terminals at the same time download network broadband shortage, resulting in slow download speed worry;
Equipped with 2.4g wireless microphone module, convenient for teaching;
B optional offline ring function
Technical parameters
Power supply: DC24V/1A
Network interface: 2 sets of RJ45
Transmission rate: 100M/10M
Support protocols: TCP/IP,UDP,IGMP(multicast)
Li audio format: MP3
Sampling rate: 8K ~ 48K
AUX sensitivity: -12db
MIC sensitivity: -40db
Standby power consumption: < 3W
Frequency response: 20Hz ~ 20KHz + / - 1dB
Harmonic distortion: THD less than 0.1%
B signal to noise ratio: more than 70dB
S working temperature: 5 ℃ to 40 ℃
Dimension: 220x150x44mm
