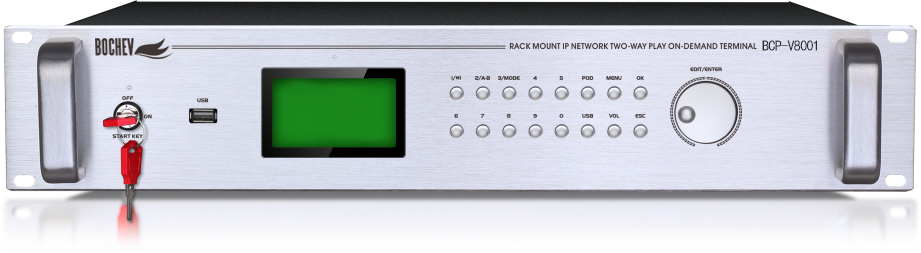

Bcp-v8001 is a rack IP network two-way vod intercom terminal
2 standard 10/100mrj45 network switch interfaces, support LAN and wan;
B with the program on demand function, can be free through the server software on-demand server programs;
- 1 double channel line input interface, 1 microphone input interface,
With 2x10W amplifier;
Audio file support MP3 format;
With 3 levels of priority function, alarm for the highest priority, network audio playback for the second level, local playback for the third level
Equipped with terminal feeding speech function, the voice of this terminal can be fed to one or more other designated terminals through the network;
The system has queuing automatic download function, to solve all terminals at the same time download network broadband shortage, resulting in slow download speed worry;
Technical parameters
Power supply: DC24V/1A
Network interface: 2 sets of RJ45
Transmission rate: 100M/10M
Support protocols: TCP/IP,UDP,IGMP(multicast)
Li audio format: MP3
Sampling rate: 8K ~ 48K
AUX sensitivity: -12db
MIC sensitivity: -40db
Standby power consumption: < 3W
Frequency response: 20Hz ~ 20KHz + / - 1dB
Harmonic distortion: THD less than 0.1%
B signal to noise ratio: more than 70dB
S working temperature: 5 ℃ to 40 ℃
320 x150x210mm s size
