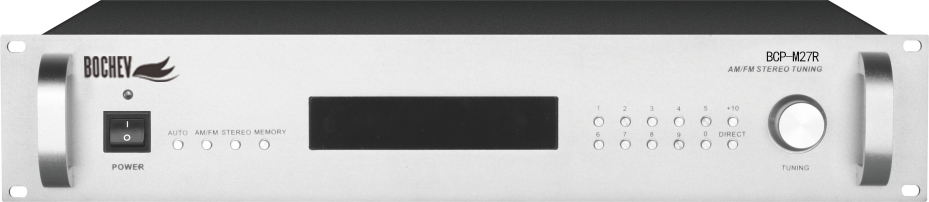

AM/FM digital tuner bcp-m27r
Adopting quartz phase-locked loop frequency synthesizer type adjustment loop, receiving frequency is accurate and stable
High brightness dynamic VFD fluorescence display, clear awake;
Support frequency modulation, amplitude modulation (FM/AM) stereo two band reception selection, radio frequency memory storage up to 80;

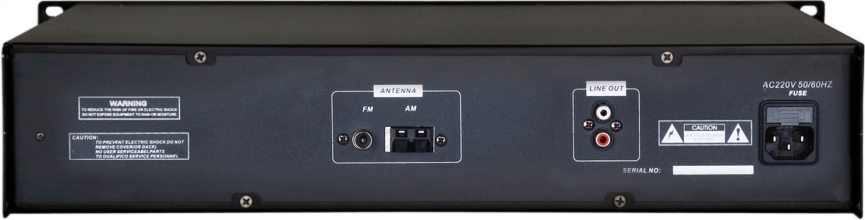

S two groups receiving antenna input: AM receiving antenna input, FM antenna 70 Ω input;It has radio frequency self-searching storage function and power off memory function;
B 2 audio signals left and right channel output;
With light touch button operation, frequency radio can be directly input to play;
2U standard chassis design, aluminum alloy panel, beautiful and practical;
Technical parameters
Frequency response: 20-20khz (less than or equal to 3dB);
B signal to noise ratio: greater than or equal to 75dB;
Harmonic distortion: less than 1%;
S working temperature: 5 ℃ - 45 ℃;
Working humidity: 20-80% relative humidity, no condensation;
Power consumption: <40W
Power supply: AC220V
