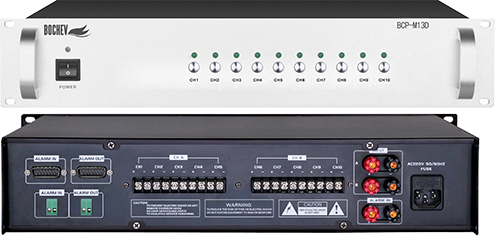

BCP-M13D
10 independent partition selection switch, partition switch, do not interfere with each other;
With 4 audio input channels, 2 channels are background music programs, 2 channels are urgent priority programs;
The working status of the zone is displayed by indicator light, the green light is the background music program, and the red light is the urgent priority;
B partition is divided into two groups of management, group A management 1~5 zones, group B management 6~10 zones, each group output maximum power is 2000W, each partition output maximum power is 600W;
There are two kinds of short circuit control signal input, one is to open the whole area for triggering, and one is to open each partition independently for triggering;
There are two kinds of short circuit control signal output, one for the whole area short circuit signal output, one for each partition independent short circuit signal output;
The equipment adopts double relay and double cut control circuit at the same time, channel isolation is greater than or equal to 80dB, to solve the problem of crosstalk between channels and so on;
2U standard chassis design, aluminum alloy panel, beautiful and practical;
Technical parameters:
Dimensions 485*88*340mm,
Power consumption is 15W
