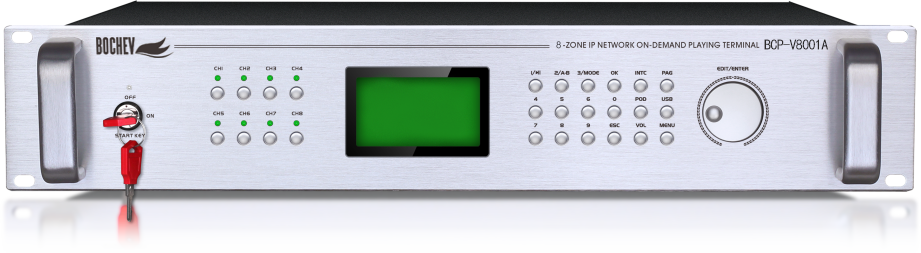

8. IP network on demand terminal of partition BCP-V8001A
Standard with a 10/100mrj45 network switch interface, support LAN and wan
Built with 4 independent IP control modules, 4 sets of audio sources can be played independently without interference
With 6 channels of electrical control, each module can be timed or manually open the circuit power supply and at the same time open the sixth power supply
With 2 levels of priority, network alarm is the highest priority, followed by the network background music
B audio file support MP3;
B 2U standard case design, aluminum alloy panel, beautiful and practical
Technical parameters:
Network interface: 1 set of RJ45
Transmission rate: 100Mbps/10Mbps
Support protocols: TCP/IP,UDP,IGMP(multicast)
Li audio format: MP3
Sampling rate: 8K ~ 48K
S working temperature: - 5 ℃ ~ 60 ℃
Working humidity: 20% ~ 80% relative humidity
Dimension: 485x405x88mm
