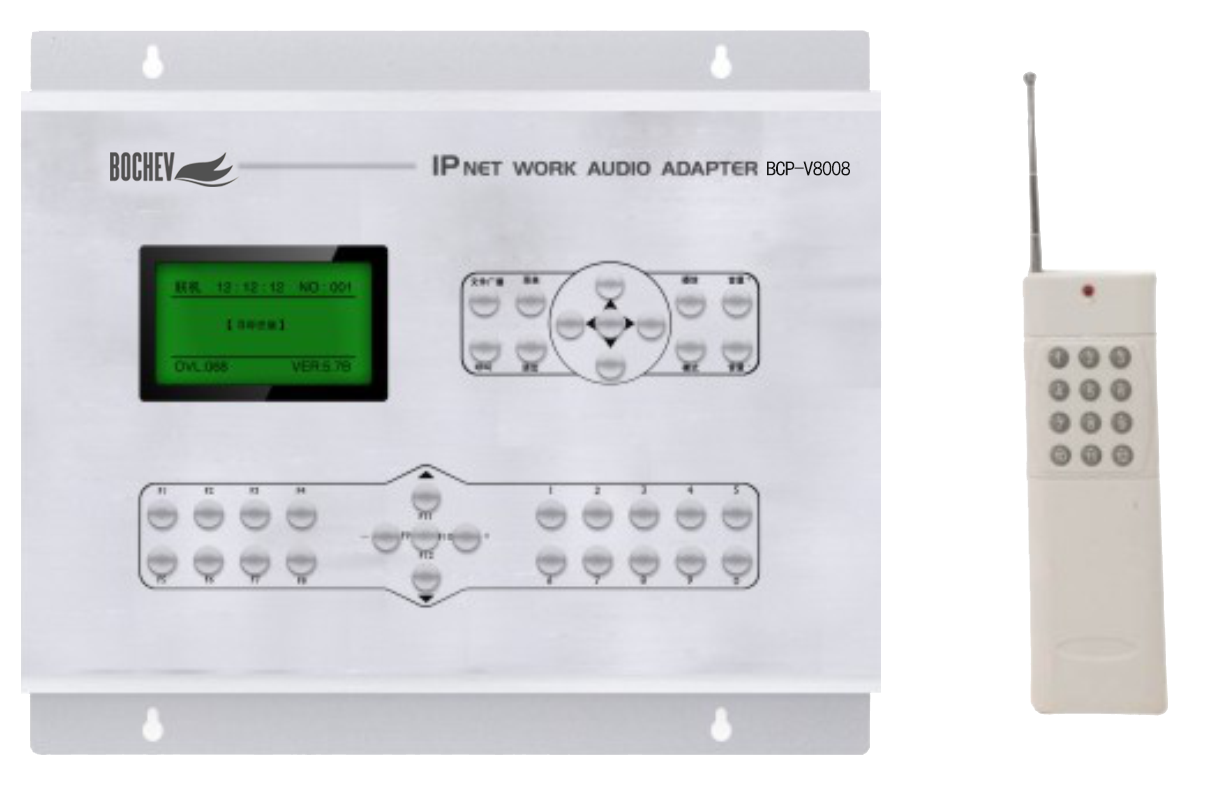

BCP-V8008
Standard with a 10/100mrj45 network switch interface, support LAN and wan
3 "high - brightness LCD screen display, with light touch button control, easy to understand the operation
With remote call function, can realize the whole area, grouping or independent partition free call selection;
With file broadcast function, you can remotely control the program on the service system to any terminal, and can control the volume adjustment
B with the program on demand function, you can freely request the songs on the server through the keyboard on the panel
With 6 microphone input, 1 line input, 1 line output;
With 8 function keys, each key can be set freely in the system as call, program play, volume add or subtract, pause play function keys, a key trigger immediately perform the task
With 12 custom keys wireless control, in the open situation the maximum distance can reach 1000 meters, can be set for calling, program playing, volume increase or decrease, pause the playback function keys, a key trigger immediately perform the task;
Technical parameters
Power supply: DC12V/1A
Network interface: 1 set of RJ45
Transmission rate: 100M/10M
Support protocols: TCP/IP,UDP,IGMP(multicast)
Li audio format: MP3
Sampling rate: 8K ~ 48K
AUX sensitivity: -12db
MIC sensitivity: -40db
Standby power consumption: < 3W
Frequency response: 20Hz ~ 20KHz + / - 1dB
Harmonic distortion: THD less than 0.1%
B signal to noise ratio: more than 70dB
S working temperature: 5 ℃ to 40 ℃
Dimension: 300x210x44mm
