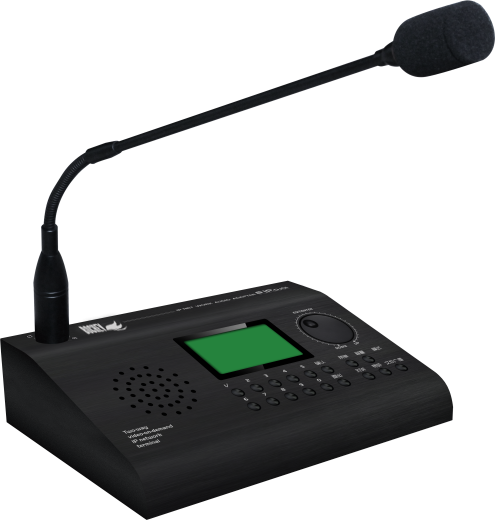

BCP-V8002
Standard with a 10/100mrj45 network switch interface, support LAN and wan transmission
3 "high - brightness LCD screen display, with light touch button control, easy to understand the operation
With full duplex two-way intercom function, IP terminal number input can achieve broadcast or intercom;
With remote call function, can realize the whole area, grouping or independent partition free call selection;
B with the program on demand function, through the keyboard on the panel can be free to request songs on the server;
High pointing microphone and 2W full frequency speaker are adopted to make the sound loud and clear.
The terminal itself has its own line input signal, real-time coding into high quality audio data stream broadcast to the designated terminal;
Equipped with electric reminder and call bell reminder function, and with multiple terminals at the same time pager automatic queuing or switching function;
Technical parameters
Power supply: DC12V/2A
Network interface: 1 set of RJ45
Transmission rate: 100M/10M
Support protocols: TCP/IP,UDP,IGMP(multicast)
Li audio format: MP3
Sampling rate: 8K ~ 48K
AUX sensitivity: -12db
MIC sensitivity: -40db
Standby power consumption: < 3W
Frequency response: 20Hz ~ 20KHz + / - 1dB
Harmonic distortion: THD less than 0.1%
B signal to noise ratio: more than 70dB
S working temperature: 5 ℃ to 40 ℃
Dimension: 230x148x50
