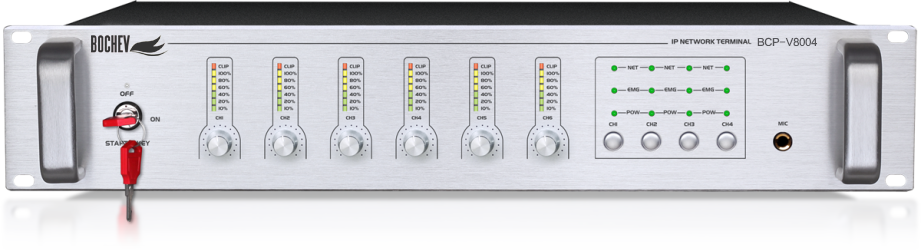

Four-channel IP network vod terminal bcp-v8004
Standard with 2 10/100mrj45 network switch interface, support LAN and wan
3 "high brightness LCD screen (resolution 128*64), with light touch button control, easy to understand the operation
With 1 channel local line input, 1 channel microphone input interface, 1 channel audio output
1 circuit normal short circuit output function, 1 circuit fire emergency output, at the same time output 24V strong cutting function;
Equipped with infrared remote control, remote control terminal functions
With the program on demand function, the program can be on demand server freely through the server software, terminal keyboard and remote control
USB interface, support USB on demand program,
Audio file support MP3 format;
With 2 - way power management, can achieve timing or manual open
With 3 levels of priority function, alarm for the highest priority, network audio playback for the second level, local playback for the third level
Equipped with terminal feeding speech function, the voice of this terminal can be fed to one or more other designated terminals through the network;
With standby time setting function, the time setting range is between 1-99 minutes, the user can be free according to the needs.
Technical parameters:

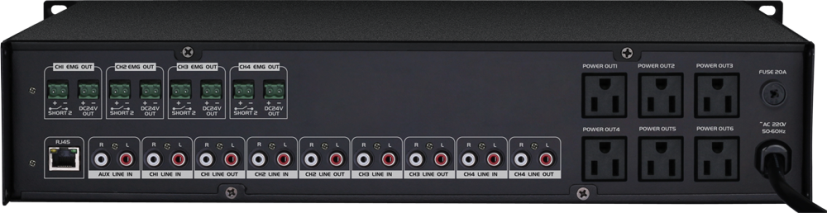

Network interface: 2 sets of RJ45
Transmission rate: 100Mbps/10Mbps
Support protocols: TCP/IP,UDP,IGMP(multicast)
Li audio format: MP3
Sampling rate: 8K ~ 48K
AUX sensitivity: -12db
Frequency response: 50Hz - 16KHz
Harmonic distortion: THD less than 0.1%
B signal to noise ratio: more than 70dB
S working temperature: - 5 ℃ ~ 60 ℃
Working humidity: 20% ~ 80% relative humidity
Dimension: 485x405x88mm
