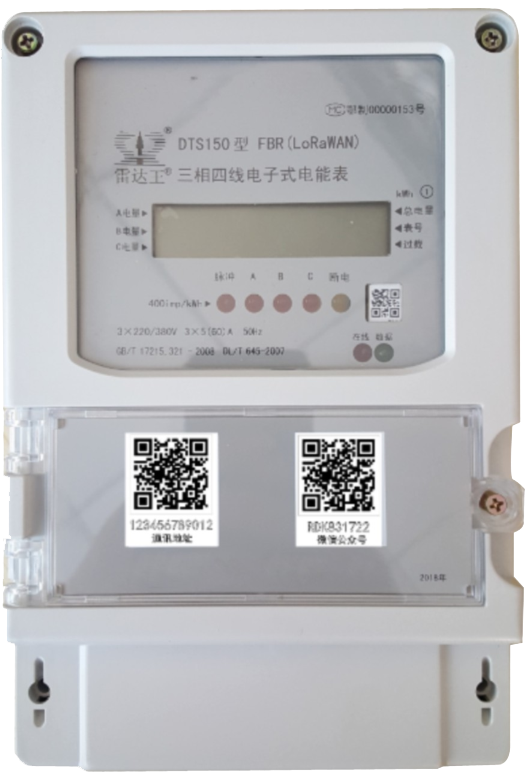

Smart meter (three-phase) bci-cem02
Product features
With RS485 communication interface and external power off function, it can read power, voltage, current, power and power factor remotely.
Technical parameters
Working frequency: 433 MHZ / 470 MHZ, 510 MHZ / 868 MHZ, 915 MHZ / 923 MHZ
Communication protocol: LoRaWan
Rf power: up to 20dBm, adjustable
Receiving sensitivity: -143dbm@sf12/125khz;
Communication distance: 2KM in the city, 5KM in the suburb;
Rated working frequency: 50HZ/60HZ
Rated voltage: 3*220V/380V
Working voltage :(70%-130%) rated voltage
Pulse constant: 1.5(6)A 3200imp/kWh 10(40)A 800imp/kWh
15 (60) A 400 imp/kWh 20 (80) A 400 imp/kWh
Power consumption: < 0.8w *3
Starting current: less than or equal to 0.004Ib
Latent movement: it has the function of logic anti-latent movement
External dimensions: 249mm*170mm*75mm
Weight: 1.5 kg
