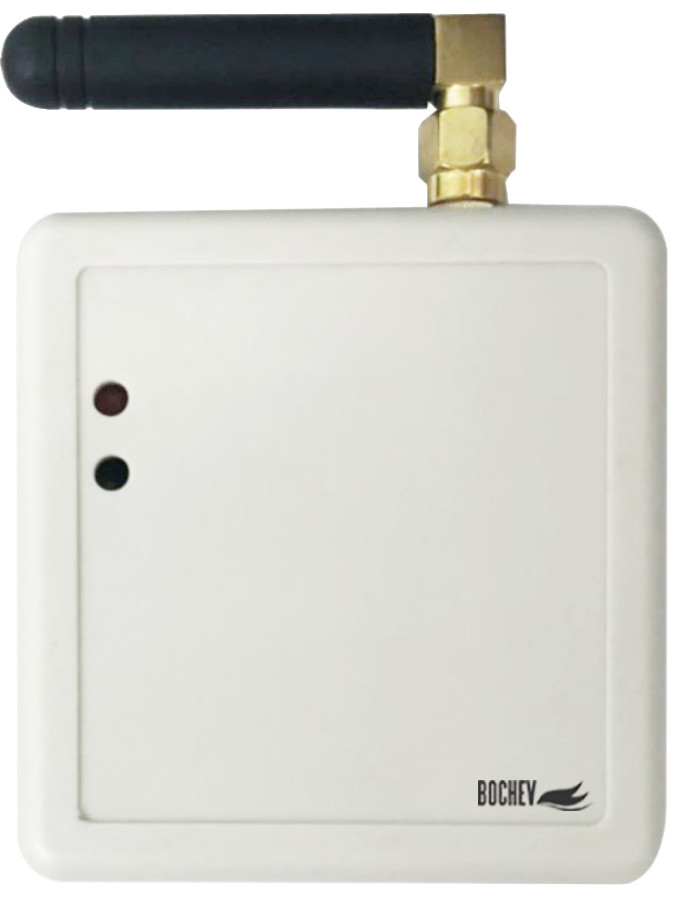

Bluetooth gateway bci-ngw03 /BL/LR
Product overview
BLE and LoRa technology based design.BLE gateway scans BLE beacon signal and reports it to LoRa gateway.Parameter setting, such as heartbeat cycle, LoRa working mode can adjust insufficient resources according to customer requirements.
Product features
LoRaWAN 1.02 compatible
1200 mah lithium ion battery power failure protection
Multi-battery optimization Settings
Product specification
Location mode: bluetooth
Scanning range: 20 meters
Protocol: LoRaWan
Frequency: 470MHz 4A2 group
Sensitivity: -142.5dbm
Maximum working current: 140mA (@20dbm)
Standby current in sleep mode: 40uA
Power supply: 1200 mah Li - Po
Working temperature: 5 ~ + 70 ℃
Storage temperature: - 40 ~ + 85 ℃
Working humidity: 5% ~ 95%
Built-in battery :1200mAh li-po
Size: 58 * 60 * 28mm
Charging voltage: DC 5V
Urban communication distance: > 1.5km
