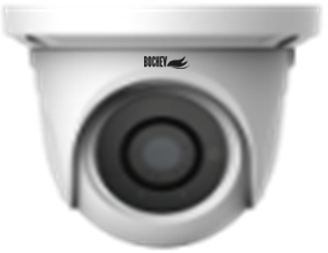

Two million 20 m infrared network hemispheres bcn-vd82df

  • Performance Performance

    2MP (1920*1080) full real-time coding, capture resolution 1920*1080

    ICR infrared mobile filter automatically switch, achieve day and night function

    10 ~ 20 meters infrared night vision distance

    Support 3D noise reduction, digital width dynamics, ROI ROI coding

    PoE power supply is optional

    Support smart phones, tablets, remote monitoring

    IP66 protection level

    Dual stream support



     technical parameters Specification
    Model / parameter BCN-VD82DF
    Camera
    Image Sensor 1/2.7" CMOS
    Image size 1920*1080
    Electronic shutter 1/25 second ~ 1/100000 seconds
    Automatic aperture Fixed aperture
    Minimum illumination Color: 0.007lux@F1.2, AGC ON
    Black and white: 0lux with IR
    Lens 2.8mm@F1.85, horizontal field of view: 102°
    3.6mm@F2.0, horizontal field of view: 97°
    Lens interface M12
    Day and night conversion mode ICR infrared filter
    Wide dynamic range Digital wide dynamic
    Digital noise reduction 3D digital noise reduction
    Adjustment angle Universal ball shaft mechanism (any angle)
    Video compression format H.265 / H.264 / MJPEG
    H.265 compression standard Main Profile @Leve4.1 High Tier
    Encoding VBR/CBR
    Picture quality Five-speed adjustable under VBR conditions, optional under CBR conditions
    Compressed transmission rate 256Kbps ~ 5Mbps
    Resolution 1080P (1920*1080), 720P (1280*720), D1, CIF, 480*240
    Image setting Region of interest, brightness, chroma, saturation, contrast, wide dynamics, sharpening, noise reduction (both adjustable via IE and client)
    Area of ​​interest stand by
    interface
    Network Interface RJ45
    Features
    Remote monitoring IE browsing, CMS remote control
    Number of client connections Supports up to 4 users to monitor online at the same time, supporting multi-stream real-time transmission
    Network protocol TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
    Interface Protocol ONVIF
    storage Network remote storage
    Intelligent alarm Mobile alarm
    PoE power supply Optional support
    Infrared light distance 10-20m
    waterproof level IP66
    other
    power supply DC 12V (POE optional)
    actual power <4W
    working environment - 30 ° C ~ 60 ° C, ≤ 95% (relative humidity)
    size Φ91.4 × 108
    Weight (net weight) 369g
    Installation method Hoisting (wall mounted after wire box and bracket)
