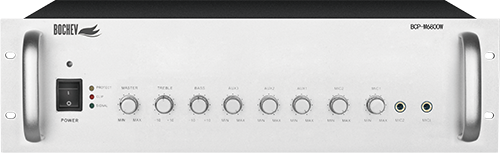

3U band precombined broadcast power amplifier bcp-m6800w
Adopt advanced high-efficiency power amplifier circuit, with 2 microphone input, 3 channel input, 1 channel auxiliary output;

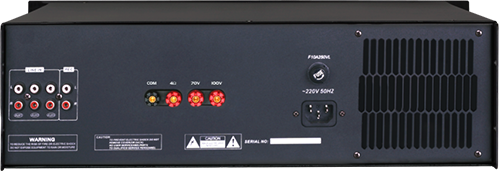

S has a fixed resistance constant voltage output, output constant voltage is 70 v / 100 v, output 4-16 Ω fixed resistance
The volume of each channel can be independently adjusted, with high and low timbre adjustment;
Microphone 1 is the highest priority function, automatic suppression of other input signals, microphone 2 and other line mixing output;
Signal indication, peak cutting indication, overload indication function;
3U standard chassis design, beautiful and practical;
Technical parameters:
AUX sensitivity: -12db
Sensitivity of microphone: -40db
Frequency response: 80Hz ~ 16KHz + / - 1dB
Harmonic distortion: THD less than 0.1%
B signal to noise ratio: more than 70dB
Line output: 0dB
Output power: 800W
Protection circuit: dc protection, overload, over temperature, short circuit protection
S working temperature: - 5 ℃ ~ 80 ℃
Working humidity: 20% ~ 80% relative humidity, no condensation
Dimensions: 485x425x132mm
Power supply: AC220V/50Hz
