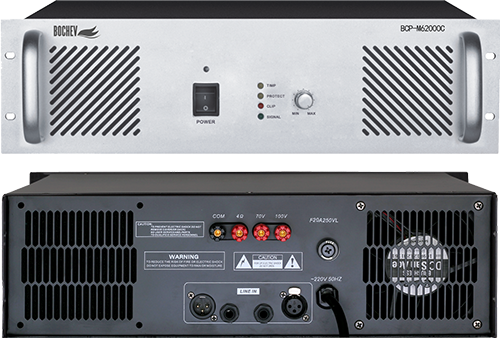

Pure post-stage broadcast power amplifier 2000W bcp-m62000c

Adopt advanced high-efficiency power amplification circuit, with 1 balanced input, 1 balanced output, 1 non-balanced input, 1 non-balanced output;

S has a fixed resistance constant voltage output, output constant voltage is 70 v / 100 v, output 4-16 Ω fixed resistance

1 channel volume can be adjusted independently

Signal indication, peak cutting indication, overload indication function;

3U standard chassis design, beautiful and practical;



Technical parameters:

Sensitivity: 0dB

Output power: 2000W

Frequency response: 80Hz ~ 20KHz + / - 1dB

Harmonic distortion: THD less than 0.1%

B signal to noise ratio: greater than or equal to 80dB

Line output: 0dB

Protection circuit: dc protection, overload, over temperature, short circuit protection

S working temperature: - 5 ¡æ ~ 80 ¡æ

Working humidity: 20% ~ 80% relative humidity, no condensation

Dimensions: 485x465x132mm

Power supply: AC220V/50Hz;
