Controlled digital tuner bcp-m28r
With 485 communication interface, support broadcast control host control;
Adopting quartz phase-locked loop frequency synthesizer type adjustment loop, the receiving frequency is accurate and stable.
High brightness dynamic VFD fluorescence display, clear awake;Support frequency modulation, amplitude modulation (FM/AM) stereo two band reception selection, radio frequency memory storage up to 80;

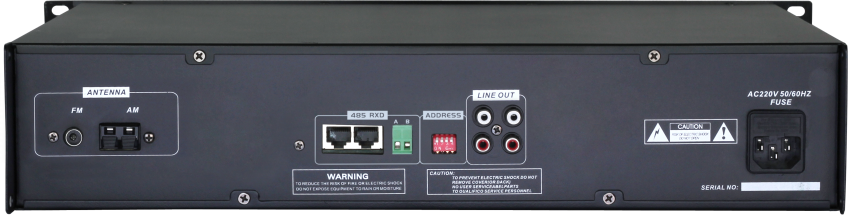

S two groups receiving antenna input: AM receiving antenna input, FM antenna 70 Ω input;
With radio frequency self-search storage function, and power off memory function;2 audio signals left and right channel output;
With light touch button operation, frequency radio can be directly input to play;

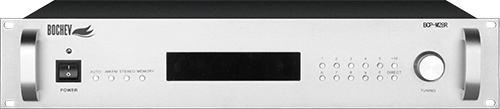

2U standard chassis design, aluminum alloy panel, beautiful and practical;
Technical parameters
Frequency response: 20-20khz (less than or equal to 3dB);
B signal to noise ratio: greater than or equal to 75dB;
Harmonic distortion: less than 1%;
S working temperature: 5 ℃ - 45 ℃;
Working humidity: 20-80% relative humidity, no condensation;
Power consumption: <40W
Power supply voltage range: AC220V
